WR1100
WRAPPERS
Call for Pricing

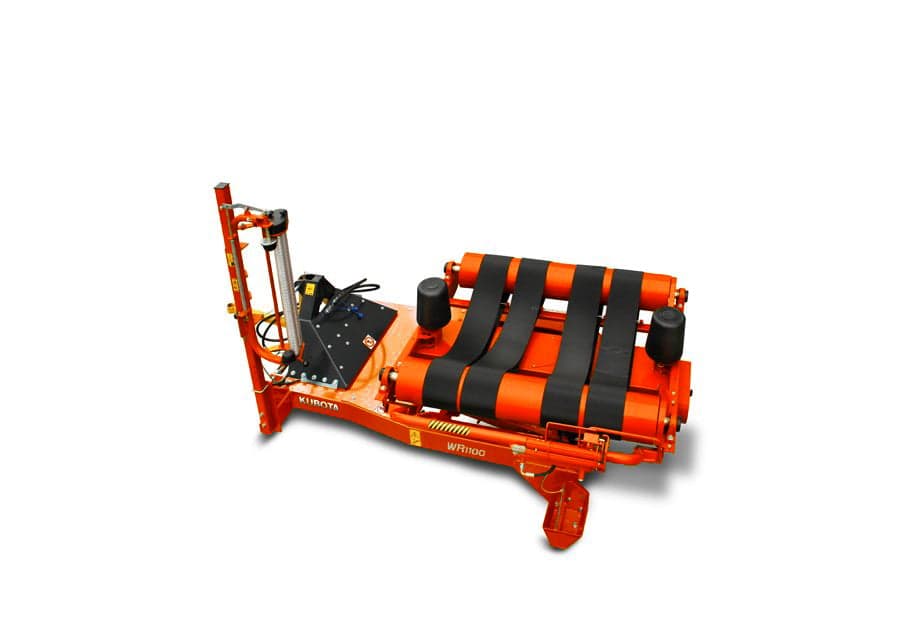

Protect your investment of quality forage harvesting with Kubota's WR1100C computer-controlled automatic bale wrapper. Equipped with a hydraulic film cutter and three-point mounted turntable wrapper, this model handles round bales up to 2,650 pounds and 47" X 50" in size. This wrapper has several features to increase its productivity such as being computer controlled, and it offers additional support legs for free-standing wrapping. Use the WR1100C for ideal storage site wrapping!
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 48 Months on your new Kubota WR Series!
WRAPPER SERIES
Wrapping at Storage Site
Kubota WR1100 series are three-point mounted wrappers with a simple but very reliable way of wrapping silage bales. When the bale is being transported to the storage site for wrapping, this three-point mounted version is the ideal solution. It can be mounted on the rear or front hydraulics of the tractor or used as a static machine with an external power pack unit.
Easy Operation
The entire wrapping process of the Kubota WR1100 can be controlled remotely from the loading tractor with the optional remote control. One operator can do the entire process of loading, wrapping and stacking. Once the wrapping process is activated with the push of a button, the whole operation runs automatically. Push the button again to unload the wrapped bale. An optional automatic stop ensures that the bale is properly wrapped.
Remote Control
The Kubota WR1100 is operated via computer controls with an integrated bale counter. A remote control is available as an option, making it the ideal solution for static use.
Specifications
1 Pre- Stretcher 750mm
Adapter Kit For 20" (500mm) Film Spool
Auto- Stop At End Of Wrapping Cycle
Automatic Film Cutter
Bale And Wrap Counter
Electro Hydraulic Joystick ( J)
Fill Roll Magazine
Film End/ Tear Sensor ( C)
Manual Cable Control ( M)
Max Bale Size ( L X D) In.
Max Bale Weight Lbs.
Max. Wrapping Speed Rpm.
Mounted Wrapper
Oil Consumption (l/min)
Pre- Stretcher 29.5" (750mm)
Programmable Computer ( C)
Pull- Type Wrapper
Remote Control ( C)
Road Lights
Support Rollers/ Belts (number)
Transport Height In.
Transport Length Ft.
Transport Width Ft.
Weight Lbs. (kg)
Wheels And Axles | 10.0/80-12
1 Pre- Stretcher 750mm
Standard
Adapter Kit For 20" (500mm) Film Spool
Optional
Auto- Stop At End Of Wrapping Cycle
Standard
Automatic Film Cutter
Standard
Bale And Wrap Counter
Standard
Electro Hydraulic Joystick ( J)
Not Available
Fill Roll Magazine
Not Available
Film End/ Tear Sensor ( C)
Optional
Manual Cable Control ( M)
Not Available
Max Bale Size ( L X D) In.
47" x 50"
Max Bale Weight Lbs.
2650
Max. Wrapping Speed Rpm.
30
Mounted Wrapper
Standard
Oil Consumption (l/min)
28
Pre- Stretcher 29.5" (750mm)
Standard
Programmable Computer ( C)
Standard
Pull- Type Wrapper
Not Available
Remote Control ( C)
Optional
Road Lights
Not Available
Support Rollers/ Belts (number)
2/4
Transport Height In.
69"
Transport Length Ft.
9'
Transport Width Ft.
5.25'
Weight Lbs. (kg)
1653
Wheels And Axles | 10.0/80-12
Not Available
